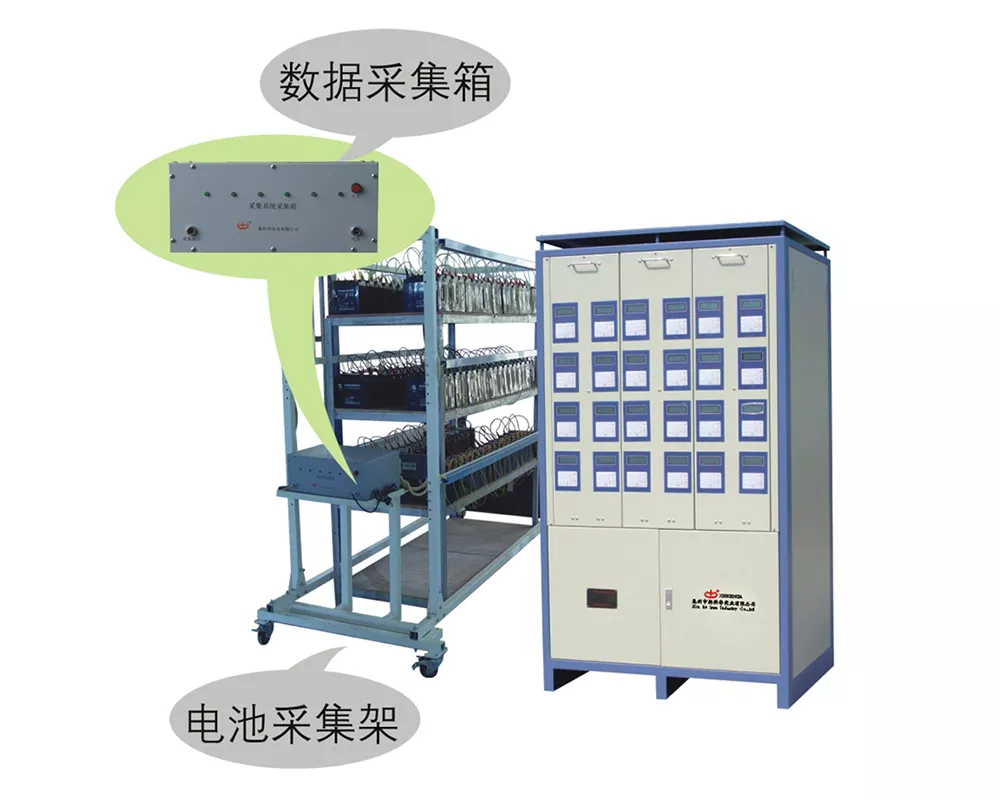

Data Acquisition System (CSC and TMC Series)

Brief Introduction

Suitable for large-scale formation of large, medium, and small sealed lead-acid batteries. It performs online monitoring of individual batteries, and is particularly suitable for capacity screening and batch grouping of batteries that need to be used in pairs.

Features

• Controlled by a dedicated microcomputer with LCD display, and connectable to a PC.

• Easy to operate: Programs can be edited, viewed, started, or stopped via the device's control panel, or the device can be operated by downloading programs through a computer.

• Intelligent program control prevents quality accidents such as overcharging and over-discharging of batteries.

• Discharged power is fed back to the power grid, and the operation of each circuit does not interfere with each other.

• The transformer adopts an energy-saving design, eliminating series resistors in the circuit to save electrical energy.

• Specifications below 60A are without fuses, and the main circuit adopts a resettable protection device.

• The acquisition system uses a dedicated industrial control bus, featuring fast data processing speed and stable and reliable system performance.

• Data acquisition adopts a "high-speed parallel acquisition mode" with no time difference and accurate data.

• The acquisition module is close to the battery, saving wiring and greatly reducing user investment.

• This machine integrates formation, monitoring, and automatic capacity screening and grouping, achieving extremely high production efficiency.

• Voltage Control Accuracy: ≤±0.5%F.S

• Current Control Accuracy: ≤±0.5%F.S

• Time Control Accuracy: ≤±10S/24h

• Voltage Control Range: 0.5%~100%

• Current Control Range: 1%~100%

• Single Battery Voltage Control Accuracy: ≤±0.2%F.S (F.S=12V)

• Minimum Set Data Acquisition Interval: 1S

• Configurable Voltage Acquisition Points: 18~24 points
