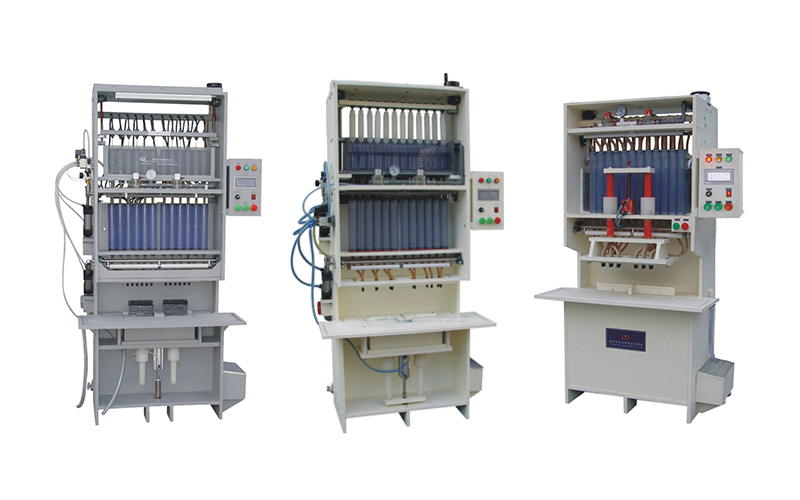

Vacuum Acid Filling Machine for Electric Vehicle Batteries


Purpose

Suitable for quantitative acid filling of small sealed lead-acid batteries, especially designed for electric vehicle batteries.

Features

  • Microcomputer control technology with a touchscreen operation interface.

  • Pneumatic-hydraulic technology ensures stable, fast operation and excellent repeatability.

  • Precision manufacturing for high accuracy.

  • Acid-resistant design enabling long-term use.

  • Organic integration of quantitative cup dosing and vacuuming.

  • Synchronous adjustment for 12 tubes.

Functions

  1. Supports two working modes: automatic and manual.

  2. Allows arbitrary setting of acid filling volume, acid filling times, and vacuuming times.

  3. Enables setting of various time parameters as per user requirements.

Technical Specifications

  • Power Supply: 220V/50Hz

  • Air Supply: 0.4~0.6MPa

  • Single-Tube Acid Filling Volume Control Accuracy: ≤±0.5%F.S

  • 12-Tube Acid Filling Consistency Accuracy: ≤±0.5%F.S

  • Acid Filling Speed: 240 pcs/hour (12V/7AH)

  • Air Consumption: 0.01m³/min


Specification Sheet

Model

Max Acid Filling for Single Tube（mL )

Acid Filling Type

Dimension(cm)

Weight

(Kg)

w

D

H

MTL-FCK200x12

30~200

Measuring Cup+ Vacuum

110

80

190

220

MTL-FCB250x12

30~250

Weight + Vacuum

110

900

206

240


(others can be designed for request)

For Reference Only
